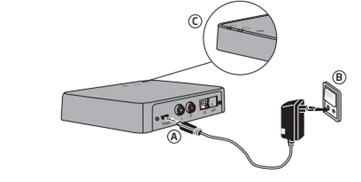

1. Plug the power cord into the “power” connector on the Streamline TV labelled (A).

2. Plug the power supply into the power supply (B).

3. Check that Streamline TV is on; after 10 seconds: Light indicators in white mean the unit is starting up: Flashing blue indicates that pairing with your hearing aids is needed.

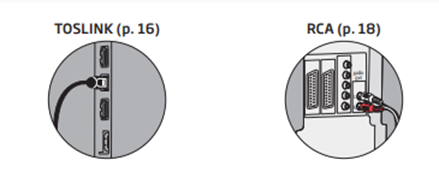

1. Remove the plastic cap from the TOSLINK cable and connect the TOSLINK cable to the TOSLINK output on your TV (C). Or the RCA cable to the RCA Output on your TV (Typically marked “L – R AUDIO OUT”).

2. Connect the TOSLINK cable to the Purple TOSLINK input (D) on the Streamline TV unit and or the RCA cable to the RCA connectors (C) labelled “L” and “R” (white and red to correspond with red and white RCA connectors) on the back of the Streamline TV unit.

3. The TOSLINK output (E) may be used to connect other Toslink devices such as surround sounds etc.

4. An alternative to RCA cable is to use a Mini Jack Adapter and plug the RCA cable into this adapter then into the headphone OUTPUT of the TV. Then connect the RCA cables to RCA connectors (C) on the back of the Streamline TV.

Pairing Signia Hearing Aids To Streamline TV

1.    Ensure the Streamline TV unit is powered on. Restart the hearing aids to activate pairing mode.

2.    Restart the hearing aids to activate pairing mode. This is done by inserting them in the charger (3-5 seconds) then removing them, holding the volume down button for 5 seconds until they turn off or by opening and closing the battery doors on non-rechargeable hearing aids.

3.    Place both hearing aids close to, or on top of the TV Adapter. Pairing is completed when the power indicator and the TV indicator is blue for about 30 seconds

4   You should now be able to hear the TV directly through the hearing aids.

Helpful Videos:

Connecting cables to TV (labelled Oticon but is the same unit) https://www.youtube.com/watch?v=nlgWbYFgVNI

Connecting cables to Streamline TV and Pairing to Hearing Aids:

https://www.youtube.com/watch?v=1DImiXBaP9E
